AIR-TO-WATER CHILLERS – ATLANTIA POWER KWP | KWB
Multiscroll air-to-water chillers
352-831 kW
Plate heat exchanger (KWP)
Partial and total heat recovery system for DHW hot gases
Shell and tube heat exchanger (KWB)
Freecooling system for free cooling water
- Reduced charge of low-GWP HFO refrigerant R-1234ze minimizing CO₂ footprint (99.9% lower GWP than R-410A and 99.5% lower than R-32).
- Equipped with the latest generation of hermetic scroll DSG compressors designed in tandem with plate heat exchangers and optionally with the latest generation of multitubular heat exchangers.
- Wide operating range of the outdoor temperature equipment.
- Incorporate the latest generation of AQUAMATIX Siemens modular programmable electronic controllers.
- High energy efficiency at partial load exceeding the seasonal efficiency requirements of the Ecodesign Regulation 2021 (EU 2016/2281) with up to 17% energy savings.
- Electronic fans and electronic expansion valve as standard for minimum energy consumption and electronic condensation control.
Optional modular version (series 1) for modular assembly with easy and fast interconnection, which makes this an effective and simple solution for installations where compact, light, easy to transport and high power equipment is required.
In addition, they offer an important solution for the continuous operation of the equipment without interruption, thanks to their independence of electrical connection, since the failure of one of the modules can be easily repaired without having to stop the operation of the complete modular installation.
Wide range of power due to its modulation, each module reaching a cooling capacity of 124 kW and with the possibility of a maximum of 8 modules.
System that uses waste heat from air condensation to heat water for both DHW and industrial applications.
- Recovery of up to 100% of heat energy.
- Free production of high temperature hot water.
- Reduced electricity consumption of the heating system.
- Reduction of fossil fuels and CO₂ emissions with efficient and renewable solution.
Integrated Freecooling
New optional additional free-cooling coils integrated in the unit in the same V’s of the cooling circuit, which allows to take advantage of the energy of the outside air when the external conditions are favorable to carry out the energy exchange with the water of the installation.
Freecooling coils integrated in the same V’s of the refrigeration circuit.
Serie 1 S/P
Serie 2 S/P
Serie 4 S/P
Serie 6 S/P
Serie 1 H
Serie 1 B
Serie 1 B: Combination of options requiring S/P chassis lengthening
Serie 2 H
Serie 4 H
Serie 6 H

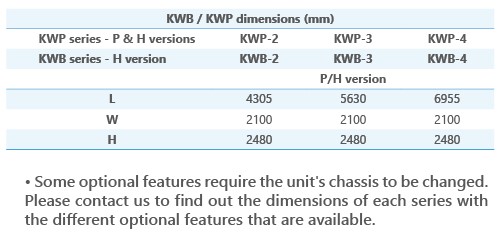

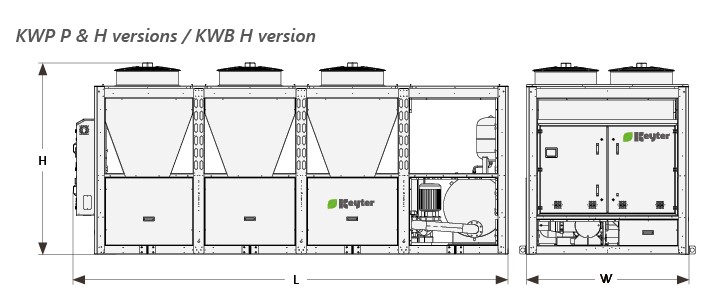

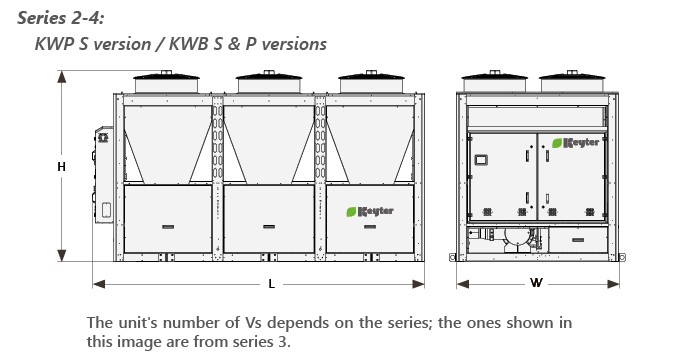

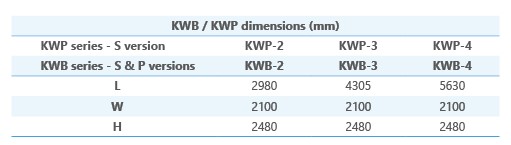

| Standard equipment dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Serie 1 | Serie 2 | Serie 4 | Serie 6 | ||||||||
| Chassis | S/P | B | B* | H | H* | S/P | H | S/P | H | S/P | H |
| L | 2190 | 2640 | 2640 | 3830 | 3830 | 2980 | 4305 | 5630 | 6955 | 8280 | 9605 |
| A | 1100 | 1100 | 1300 | 1100 | 1300 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 |
| H | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
*Special width for integrated freecooling
HELVETIA includes the AQUAMATIX programmable electronic control, the Climatix HMI user terminal and the RS485 communication interface for ModBus TCP/IP and BACnet IP communication.
Technical Documentation
Adaptation and Versatility
Versions with hydraulic unit and built-in buffer tank to reduce compressor short cycling.
Available with plate heat exchangers (KWP) or shell and tube heat exchangers (KWB)
Condensing pressure control as standard for all year operation.
Adaptability to the facility offering a wide range of models.
Maximum accessibility and easy maintenance thanks to removable panels.
Energy efficiency
High energy efficiency in partial and full load, reducing operating costs.
Complies with ErP 2021.
Tandem multiscroll to improve seasonal energy efficiency.
Electronic fans with AxiTop and electronic expansion valve as standard for minimal energy consumption.
Equipment with a hydraulic unit can include high performance electronic pumps.
Hot gas partial and full heat recovery system for DHW.
Water free-cooling system for free-cooling.
KEYTER CATALOGUE
More details about this product
The brand new Keyter Catalogue is out now and free available.
In this year’s edition you will discover our complete range of products and find more technical specifications about the Keyter units.
Hydraulic versions
KWB/KWP – Standard version (S)
Equipment with no hydraulic unit.
KWB units with a shell and tube heat exchanger and KWP units with a plate heat exchangers.
KWB/KWP units have triple protection for the heat exchanger because, as standard, they come with a flow switch, water antifreeze protection and freon antifreeze protection.
KWB/KWP – Version with hydraulic unit (P)
Integrated hydraulic unit composed of a circulation pump suitable for water or glycol water to 0°C, bleed and stop valves, pressure gauges and a flow switch.
For water temperatures lower than 0°C, the low temperature kit is required, which includes electrical heaters and insulation on the heat exchanger, water piping and expansion vessel and a replacement pump for small models. This kit allows it to work with water down to -10ºC.
KWB/KWP – Version with hydraulic unit and buffer tank (H)
Hydraulic unit built into the equipment, composed of a circulation pump suitable for water or glycol water to 0ºC, a 725-litre buffer tank (except KWP-1, which is 375-litre, 725 litres optional) with an antifreeze electrical heater to reduce compressor short cycling, a 50-litre expansion vessel, bleed and stop valves, pressure gauges and a flow switch.
Optionally, a module that is separate to the unit can be supplied, with a buffer tank and electrical heaters
Controls
ATLANTIA POWER units include:
