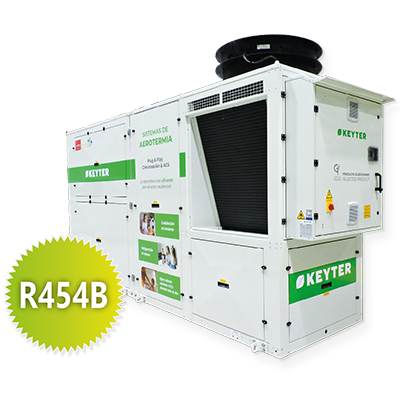

AIR-TO-WATER HEAT PUMPS – PACIFICA COMBO KWE
pacificaCOMBO
Centralized plug-and-play aerothermal system for climate control and domestic hot water (DHW) production
56-71 kW66-87 kW
Documentation & Features
Specifications table
Documentation & Features

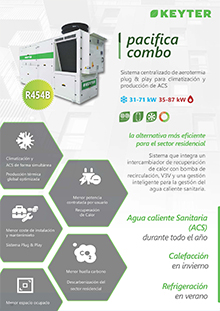

Commercial documentation
Available languages:
 |  |  |  |  |
pacifica combo
31-71 kW 35-87 kW
Centralized plug & play aerothermal system for air conditioning and DHW production
System integrating a heat recovery exchanger with recirculation pump, 3-way valve and intelligent management for domestic hot water management.
Centralized Aerothermal System
Aerothermal air-conditioning system with continuous simultaneous DHW production using heat recovery. It has three operating modes, optimizing total thermal consumption by avoiding independent systems for each need and optimizing space, control and energy efficiency.
Benefits
- Simultaneous air conditioning and DHW
- Optimized global thermal production
- Lower contracted power per user
- Heat Recovery
- Lower installation and maintenance cost
- Plug & Play System
- Lower carbon footprint
- Decarbonization of the residential sector
- Less occupied space
Energy efficiency and design
- EC axial fan with integrated curved nozzle
- Cu-Al coils
- Polyurethane, Blygold and Cu-Cu protections
- SIEMENS programmable AQUAMATIX electronic control and CLIMATIX HMI terminal
- DHW tank made of 316L stainless steel with expansion vessel and electronic recirculation pump
- Hydraulic connections

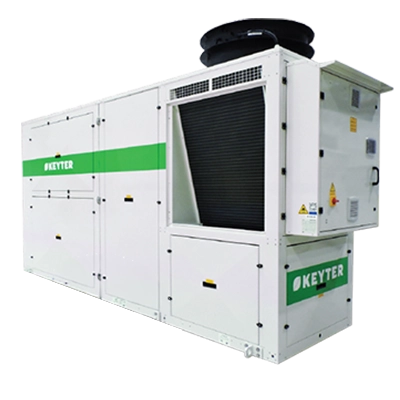

- KWE Heat Pump + KWD DHW Hydraulic Group
Integral Solution: 3 operating modes
- Combined generation in cooling mode
- Combined generation in heating mode
- DHW generation
Specifications table
General characteristics
INVERTER
EURO
Refrigerant
R454B refrigerant
✓
✓
Equipment with refrigerant charge
✓
✓
R410A or R452B refrigerants
●
●
Leak detection
●
●
Bodywork
Self-supporting chassis/cabinet in galvanized steel with a polyester powder coating cured in an oven
✓
✓
Customized color to suit the needs of the installation
●
●
Closed lower sheet-metal compartment for compressors and refrigeration components
✓
✓
Insulation in the lower refrigeration compartment
●
●
Anti-vibration supplements
●
●
Compressors
Tandem multi-scroll technology
—
✓
Inverter technology
✓
—
Compressor anti-vibration mounts
✓
✓
Soft starter
—
●
Acoustic insulation jacket
●
●
High-performance original manufacturer acoustic insulation jacket
●
●
Expansion valves
Thermostatic expansion valves
—
●
Electronic expansion valves
✓
✓
Fans
INVERTER
EURO
Outdoor fans
EC axial fans with integrated curved nozzle
✓
✓
Heat exchangers (*)
INVERTER
EURO
Coils
Cu tube and Al fin coils
✓
✓
Al / Al microchannel coils on cooling-only unitsversion R
●
●
Cu tube bundle / polyurethane pre-lacquered Al fins
●
●
ALUCOAST: Cu tubes / high-resistance Al fins
●
●
BLYGOLD: Cu tubes / Al fins with Blygold coating
●
●
COPPERFIN: Cu tubes / Cu fins
●
●
Heat exchangers
Refrigerant-water heat exchanger, AISI 316L stainless-steel plates, copper-brazed and thermally insulated
✓
✓
Stainless-steel heat exchanger SS AISI 304 / SS AISI 316 / Sealix
●
●
Energy (*)
INVERTER
EURO
Energy recovery
Partial recovery of condensation energy for domestic hot water (DHW)
✓
✓
Pump in the condensation heat recovery circuit
✓
✓
Hydraulics
INVERTER
EURO
Primary circuit pump
Single pump with normal available pressure (7-12 m.w.c.)
✓
✓
Single pump with high available pressure (15-20 m.w.c.)
●
●
Single pump with very high available pressure (25-30 m.w.c.)
●
●
Pump with variable speed drive
●
●
Standby pump (standard, high and very high available pressure)
●
●
Secondary circuit pump
Single pump with normal available pressure (7-12 m.w.c.)
✓
✓
Single pump with high available pressure (15-20 m.w.c.)
●
●
Single pump with very high available pressure (25-30 m.w.c.)
●
●
Pump with variable speed drive
✓
✓
Standby pump (standard, high and very high available pressure)
●
●
Hydraulic components
Low-temperature kit for operation with leaving water temperature < 0 ºC
●
●
Low outdoor temperature kit
●
●
Flexible water inlet and outlet connections
●
●
Water filter
●
●
Independent module with buffer tank available in 200 litres / 375 litres / 725 litres + electric heaters
●
●
Installation
INVERTER
EURO
Outdoor coil
Coil protection grille
●
●
Insulation
Thermal insulation in all cold metal lines (refrigerant or water)
✓
✓
Electrical supply
400 V / III ph / 50 Hz with neutral
—
✓
400 V / III ph / 60 Hz
✓
—
Other electrical voltages (ask about available options)
✓
✓
Packaging
Electronic expansion valves
✓
✓
Control
INVERTER
EURO
Electronic control and communication
Programmable electronic control AQUAMATIX
✓
✓
Climatix HMI user terminal for AQUAMATIX control
✓
✓
RS485 communication interface for ModBus communication
✓
✓
Modbus TCP/IP and BACnet IP communication
✓
✓
Defrost
Defrost by cycle reversal using a 4-way valve
✓
✓
Additional control and safety components
Main switch in electrical panel
✓
✓
Magneto-thermal protections for compressors, fans and pumps
✓
✓
Differential switches
●
●
Low pressure switch for pump protection
●
●
PREMIUM phase control relay, with phase failure detection and direction of rotation protection
✓
✓
EXCELLENT phase monitoring relay, adds phase unbalance, overvoltage and undervoltage detection
●
●
Triple protection for the plate heat exchanger with a water flow switch and anti-ice protections for both water and refrigerant
✓
✓
Electrical energy meter
●
●
Electrical panel
Fully wired electrical panel, with IP54 protection
✓
✓
Forced ventilation of the electrical panel
●
●
Design of electrical switchgear for high temperatures
✓
✓
Tropicalised electrical panel
●
●
Socket for common use
●
●
Antifreeze electrical resistor in electrical panel for low outdoor temperatures
●
●
General characteristics
KWD
Bodywork
Self-supporting chassis/cabinet in galvanized steel with a polyester powder coating cured in an oven
✓
Customized color to suit the needs of the installation
●
Hydraulic
DHW storage tank made of Duplex 2304 stainless steel
✓
Expansion vessel
✓
Electronic recirculation pump
✓
