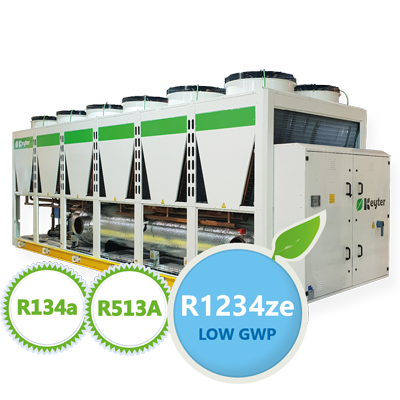

AIR-TO-WATER CHILLERS – PANGEA KWT
pangea eco totalinverter
Air to water screw chillers
176-819 kW
Documentation & Features
Specifications table
Views & Dimensions
Controls
Documentation & Features
Commercial documentation
Available languages:
|
|
|
|
|
Adaptation and Environment
- Reduced charge of low-GWP HFO refrigerant R-1234ze, minimizing the CO₂ footprint (99.5% lower GWP than R-134a or R-32).
- Wide equipment operating range.
- Condensing pressure control as standard for year-round operation.
- Latest-generation modular programmable AQUAMATIX Siemens electronic control.
- Adaptability to the installation, offering a wide range of models and options.
Energy Efficiency
- Units with INVERTER screw compressors, external variable-frequency drives and latest-generation shell-and-tube heat exchangers.
- Electronic fans and an electronic expansion valve as standard for minimum energy consumption.
- PANGEA ECO offers very high energy efficiency at partial and full load, reducing operating costs.
Heat recovery
System that uses residual heat from air condensation to heat water for both domestic hot water (DHW) and industrial applications.
- Recovery of up to 100% of the condensation heat.
- Free production of high-temperature hot water with partial recovery of hot gases.
- Reduction of electricity consumption in the hot water production system.
- Reduction of fossil fuels and CO₂ emissions with an efficient and renewable solution.
Reduction of fossil fuels and CO₂ emissions with an efficient and renewable solution.
Specifications table
General characteristics
KWT
Refrigerant
R1234ze
✓
Unit supplied with refrigerant charge
✓
Leak detection
●
Bodywork
Self-supporting chassis/cabinet in galvanized steel with an oven-cured thermosetting polyester paint finish, without panels
✓
Customized color to suit the needs of the installation
●
Unit without panels
✓
Enclosed compressor compartment (1)
●
Insulation of the compressor-compartment panels
●
Additional anti-vibration mounts
●
Compressors
Frascold compressors
●
Screw compressor technology
✓
Compressor anti-vibration mounts
✓
Soft starter
●
Acoustic insulation jacket
●
High-performance original manufacturer acoustic insulation jacket
●
Expansion valves
Electronic expansion valve
✓
Ventilation
KWT
Outdoor fans
High-performance EC axial fans
✓
AXIBLADE EC axial fans
●
Condensing pressure control
✓
Curved external nozzles
✓
AxiTop diffusers
●
Heat exchangers
KWT
Coils
Cu tube and Al fin coils
✓
Cu tube bundle / polyurethane pre-lacquered Al fins
●
Heat exchangers
Shell-and-tube heat exchanger
✓
Energy (2)
KWT
Energy recovery
Total recovery of condensation energy for domestic hot water (DHW) with plate heat exchanger
●
High-evaporation plate heat exchanger for positive-temperature chilled water
●
Electric anti-icing heater in the plate heat exchanger for domestic hot water (DHW) recovery
●
Hydraulic (2)
KWT
Hydraulic components
ICA analog flow switch
✓
Minimum hydraulic pressure switch
✓
Low temperature kit for operation with water outlet temperature < 0 ºC
●
Low outdoor temperature kit
●
Flexible water inlet and outlet connections
●
Water filter
●
Installation of pressure gauges at the unit inlet and outlet
●
Independent module with available buffer tank of 200 liters / 375 liters / 725 liters + electric heaters
●
Installation
KWT
Protection grilles
Coil protection grille
●
Bird-protection grille at the base of the unit
●
Insulation
Thermal insulation in all cold metal lines (refrigerant or water)
●
Power supply
400 V / III ph / 50 Hz with neutral
✓
Other electrical voltages (see different options available)
●
Packaging
Packaging for maritime transport
●
Control
KWT
Electronic control and communication
Programmable electronic control AQUAMATIX
✓
Climatix HMI user terminal for AQUAMATIX control
✓
RS485 communication interface for ModBus communication
✓
Modbus TCP/IP and BACnet IP communication
✓
Additional control and safety components
Main switch in electrical panel
✓
Magneto-thermal protections for compressors, fans and pumps
✓
Differential switches
●
Low pressure switch for pump protection
●
PREMIUM phase control relay, with phase failure detection and direction of rotation protection
✓
EXCELLENT phase monitoring relay, adds phase unbalance, overvoltage and undervoltage detection
●
Triple protection for the plate heat exchanger with a water flow switch and anti-freeze protection for both water and refrigerant
✓
Electrical panel
Fully wired electrical panel, with IP54 protection
●
Design of electrical switchgear for high temperatures
✓
Forced ventilation of the electrical panel
✓
Tropicalised electrical panel
✓
Socket for common use
●
Antifreeze electrical resistor in electrical panel for low outdoor temperatures
●

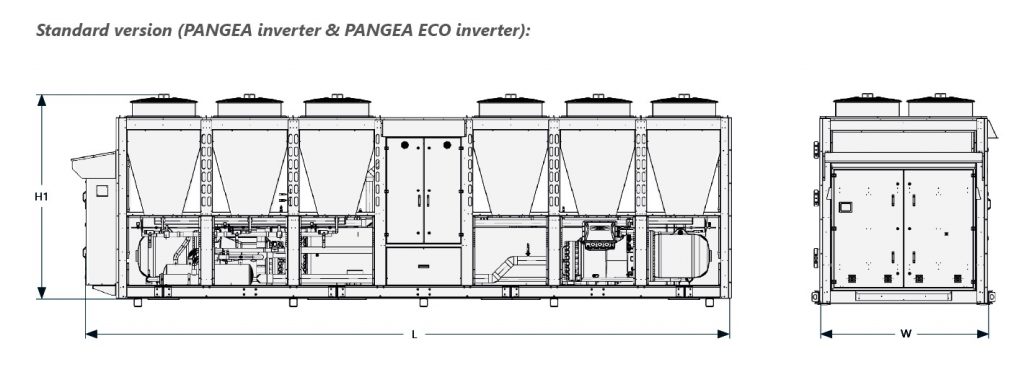

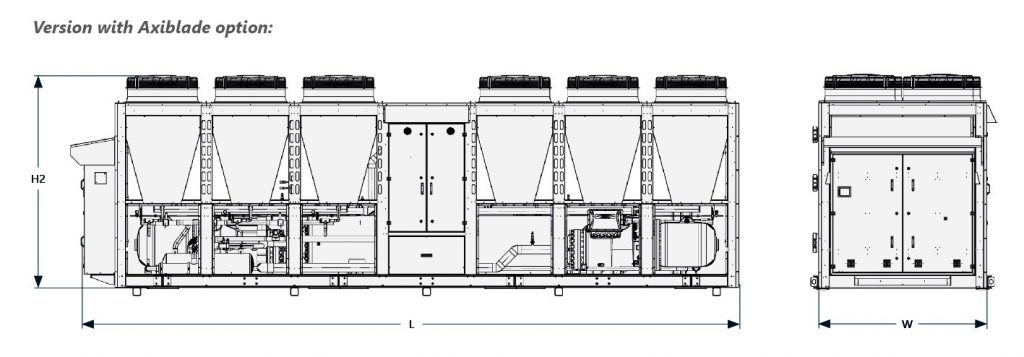

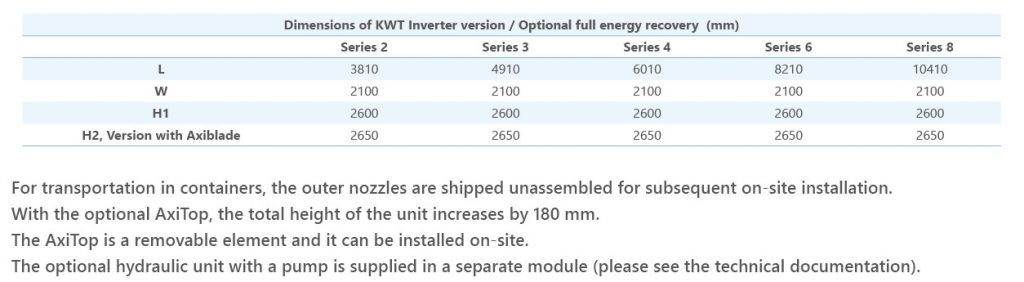

Views & Dimensions
| Chasis | Chasis 3 | Chasis 4 | Chasis 6 | Chasis 8 | Chasis 9 |
|---|---|---|---|---|---|
| Largo (mm) | 4910 | 6010 | 8210 | 10440 | 12270 |
| Ancho (mm) | 2100 | 2100 | 2100 | 2100 | 2100 |
| Alto (mm) | 2650 | 2650 | 2650 | 2650 | 2650 |
Controls
PANGEA ECO includes the programmable electronic control AQUAMATIX and the Climatix HMI user terminal.
It is compatible with optional RS485 card for Modbus communication and BACnet IP communication system.
