CHILLERS & AIR TO WATER HEAT PUMPS
PACIFICA
Euro & Inverter
39-183 kW
39-267 kW
36-174 kW | 39-183 kW
Chillers and heat pumps equipped with full inverter technology, featuring inverter compressors, an electronic expansion valve and variable-speed electronic fans to ensure optimal energy savings and comply with the ErP 2021 regulation.
The compressors in this range are in an enclosed compartment, isolated from the airflow, with versions available with a hydraulic unit and buffer tank.
34-321 kW | 39-267 kW
Chillers and heat pumps equipped with multiscroll compressor technology and electronic fans to achieve significant energy savings and comply with the ErP 2021 regulation.
The compressors in this range are in an enclosed compartment, isolated from the airflow, with versions available with a hydraulic unit and buffer tank.
PACIFICA Inverter
36-174 kW | 39-183 kW
Chillers and heat pumps equipped with full inverter technology, featuring inverter compressors, an electronic expansion valve and variable-speed electronic fans to ensure optimal energy savings and comply with the ErP 2021 regulation.
The compressors in this range are in an enclosed compartment, isolated from the airflow, with versions available with a hydraulic unit and buffer tank.
PACIFICA Euro
34-321 kW | 39-267 kW
Chillers and heat pumps equipped with multiscroll compressor technology and electronic fans to achieve significant energy savings and comply with the ErP 2021 regulation.
The compressors in this range are in an enclosed compartment, isolated from the airflow, with versions available with a hydraulic unit and buffer tank.
Technical Documentation
KEYTER CATALOGUE
More details about this product
The brand new Keyter Catalogue is out now and free available. In this year’s edition you will discover
our complete range of products and find more technical specifications about the Keyter units.
Hydraulic versions
KWE – Standard version (S)
Equipment with no hydraulic unit. The KWE equipment has triple protection of the plate heat exchanger. The series production version includes a flow switch, antifreeze protection for water and antifreeze protection for freon.

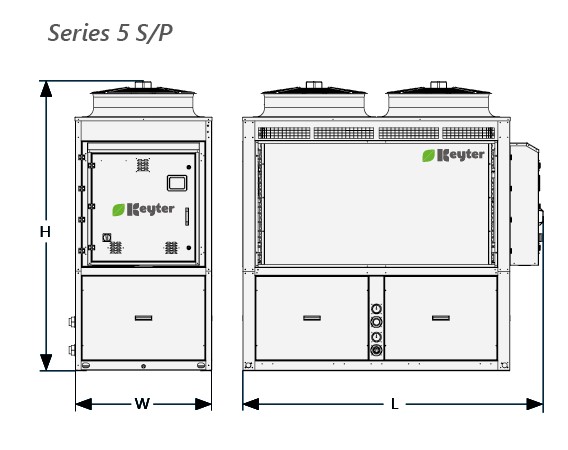

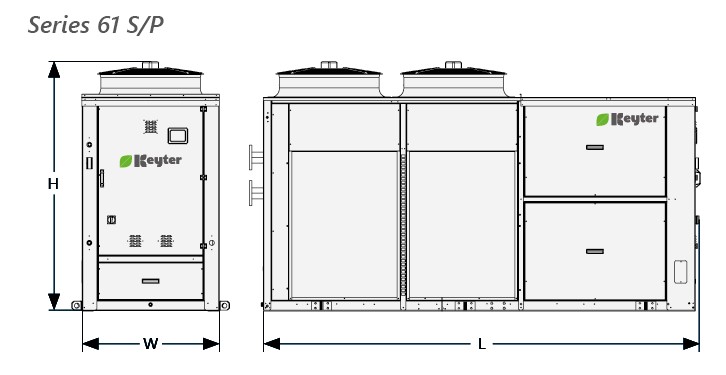

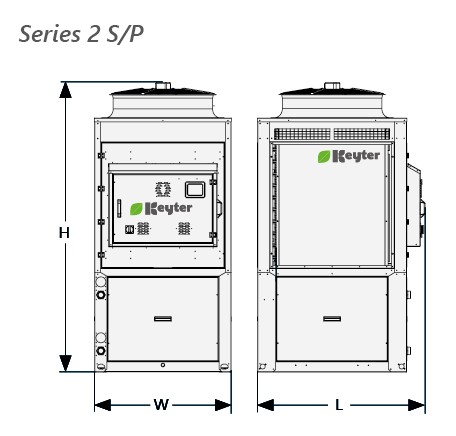

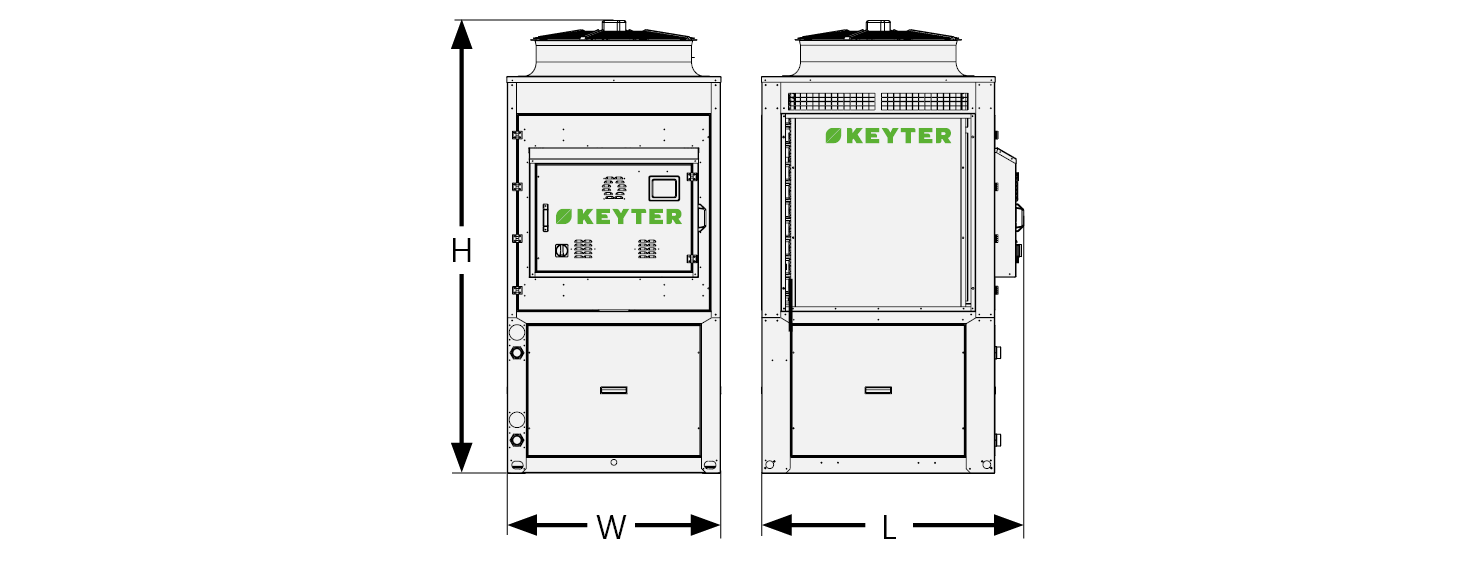

KWE – Version with hydraulic unit (P)
Hydraulic unit composed of a circulation pump suitable for water or glycol water to 0°C, expansion vessel,
bleed and stop valves, pressure gauges and a fl ow switch.
For water temperatures lower than 0°C, the low temperature kit is required, which requires replacement of the pump and adds electrical resistors to
the hydraulic elements for work with water temperatures as low as -10°C.

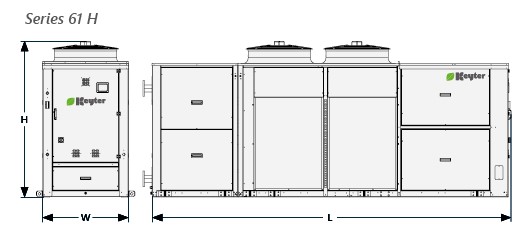

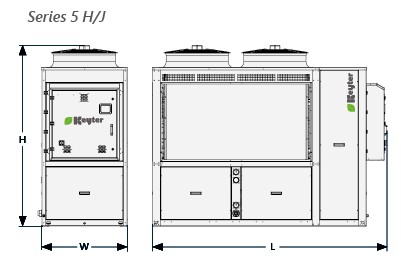

KWE – Version with hydraulic unit and buffer tank (H)
Equipment designed with a hydraulic unit in addition to a buff er tank with an antifreeze
electrical heater to reduce compressor short cycling.
The hydraulic unit is built into the very chassis of the equipment in all models except for series 6, where the hydraulic unit is in a separate module but
is delivered with the equipment.
Optionally, a module independent to the equipment may be delivered, with a 375 or 725 litre capacity buff er tank and antifreeze resistors.
For water temperatures below 0°C, it is necessary to request the low-temperature kit for the hydraulic unit (see module dimensions)
Controls
The wide variety of communication protocols (Modbus, BACnet and LonWorks) and the electronic
regulation (CAREL supervision), makes the Keyter PACIFICA a high performance unit:
